Vision

Initially, two different control schemes for the drone were suggested:

After a couple of iterations and back and forths with the designers, both of these ideas were discarded in favor of a more uniquely designed control scheme.

We were going to go for an arcadey version of a VTOL aircraft, meaning two control schemes in one, based on a simple-to-fly "fly where I point to"-mechanic.

The challenge of following a mouse target

The feel we wanted to achieve when flying around in the game was to feel just as though you are simply pointing a reticle in a direction and having the drone fly there.

Simply pushing forward

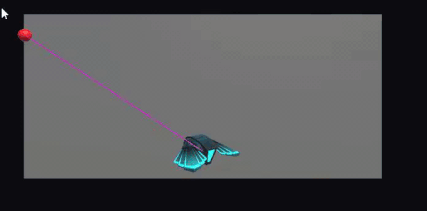

One way you could achieve this is by simply giving the drone a velocity along its own Z-axis (Z = forward in Unity), and having the same axis point towards the mouse target on a plane.

The drone will turn and fly in the direction you point to, but what about the camera?

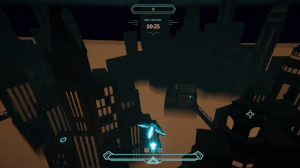

The issue you'll face trying this is that no matter which direction you decide to turn, you can't really see where you're about to go, as the direction you're facing is never the same as the one you're always moving straight forward, even if the camera is following after.

Sometimes the angle camera angle will even make it so that more than half of what the actual pilot would see is blocked from view.

Troublesome oxymorons

Everything mentioned below is assuming you are using the drone's center point as the pivot point for the camera arm.

Moving the mouse collision plane further away:

• improves visibility when turning
• makes turning slower and mouse movements less impactful

 ... and moving it closer has the opposite problem.

Making the camera lerp into a chase camera position based on the drone's forward direction:

• improves the viewing angle

• makes both camera and movement shaky and unpredictable, as the turning angle is no longer linearly relative between the camera's and the drone's forward directions


One (me :) ) may initially think that adjusting the smooth time the camera has to move into position behind the drone can solve the second problem. But all we found in testing is that the shorter smooth time you give the follow camera to rotate into position, the closer you'll get to have the relationship between the mouse and camera movement be 1:1, like in an over-the-shoulder shooter. The longer you make the smooth time, the more it will just feel like poorly implemented mouse acceleration.

Increasing the camera smooth time:

• feels like more terrible mouse acceleration


• increases the time it takes for you to see the things in front of the drone - making the problem we set out to solve in the first place even worse


Decreasing the camera smooth time:

• makes the controls feel closer and closer to an fps or over-the-shoulder style shooter - not the control scheme we wanted


Implementing camera chasing this way wasn't even an oxymoron, it was just bad all around.

The solution

So how would you go about making sure that the camera is always seeing as much as possible of the direction you're going towards, while at the same time having the drone fly towards a target location on the screen?

Well, instead of applying the forward velocity in the drone mesh's forward direction, you can apply the forward velocity in the camera's forward direction. Turning can be achieved by having a separate "target pivot transform" that follows the drone's position. Instead of just rotating the drone to the direction of the mouse, you rotate this transform to point in the direction of the mouse and decide its direction independent of the actual mesh transform.

Segregating pitch, yaw, camera and mesh transforms

To achieve this, first of all, the plane the mouse ray collides with got swapped for a sphere. This was a quick and simple but important fix for making the sensitivity curve for the mouse turning make more sense. Robert, an artist on my team, was nice enough to create a half 3D sphere mesh for me to use as a collision box.

Using a mesh rather than manually calculating the would-be collision points in 3D space meant we saved precious development time for an insignificant performance cost.

To ensure stability and stick to simpler quaternion calculations, the only pitching the player will experience is that of the camera and the mesh.

The yaw transform has a yaw value of 0 to τ radians and is independent from the mesh's and the camera's rotation.

Having the yaw transform separate means that the mouse direction and the drone's forward-moving direction are independently tracked, solving our previous "mouse acceleration" issue.

Taking the Y-value of the cross product between the drone's forward direction (ignoring pitch, aka the yaw transform's forward direction) and the target pivot's forward direction (see picture above) allows us to determine the direction to turn, regardless of the camera's pitch. That is as long as the camera's pitch doesn't get too close to -Y or +Y (global/world space), which it is clamped not to do.

The VTOL

Turning the drone into a VTOL was simply implemented as making two different movement systems that you can swap between on-the-fly whenever you want. In code, I decided to call them PlaneMovement and HelicopterMovement.

The HelicopterMovement mode is meant to make picking up and delivering packages easier and is quite similar to Plane Movement, but you can "hover" mid-air as well as go straight up and straight down. The pattern for switching between the different movement modes is very simple.

Obligatory 2024 edit: I would never have gone down the inheritance route here if I wrote this today.

These methods get called several times per second with a fixed timestep

The Player actor object keeps a PlayerMovement component object with two subclasses, PlaneMovement and HelicopterMovement.

The PlayerMovement component object keeps one of its different "variants" of itself as the active variant (or mode), and redirects calls that depend on the currently active variant down to the child classes.
